INDUSTRIAL HIGH PRESSURE WASHING
& PUMPING SYSTEMS

STATIONARY COLD
WATER PRESSURE WASHING SYSTEMS

Belt driven, oil bath plunger pump (GH 210EA & GH31SEA - Direct drive)
CSA Approved / fully automatic
Auto start / stop control circuit with solid state time delay
High temperature safety shut down (thermo probe) for pump protection
Ideal for centralized systems with multi-station outlets
Gun-activated chemical injection
Complete with dual lance gun, downstream chemical injection & 50 ft. high pressure hose assembly

Model	Flow GPM	Pressure PSI	Motor H.P	Voltage 1 Phase	Voltage 3 Phase	Total Amps 1 Phase	Total Amps 3 Phase	Size In. L/W/H
GH210EA	2.1	1000	1.5	110	-	12.1	-	24/12/14
GH315EA	3	1500	3	230	-	12	-	24/12/14
GH411EA	4	1100	3	230	208/575/480	17	9.8/3/4.4	30/20/16
GH420EA	4	2000	5	230	208/575/480	22	14.6/5/6.6	30/20/16
GH429EA	4	2900	7.5	230	208/575/480	33	22.5/7.5/9.8	30/20/16
GH440EA	4	4000	10	-	208/575/480	-	29/10/12.5	30/20/16
GH543EA	5.4	3000	10	-	208/575/480	-	29/10/12.5	30/20/16
GH562EA	5.6	2000	7.5	230	208/575/480	33	22.5/7.5/9.8	30/20/16
GH612EA	6	1200	5	230	208/575/480	22	14.6/5/6.6	30/20/16
GH620EA	6	2000	7.5	230	208/575/480	33	22.5/7.5/9.8	30/20/16
GH812EA*	8	1200	7.5	230	208/575/480	33	22.5/7.5/9.8	30/20/16
GH820EA*	8	2000	10	-	208/575/480	-	29/10/12.5	30/20/16
GH830EA*	8	3000	15	-	208/575/480	-	40/14.5/18.1	38/28/19

* Complete with 2 single lance guns, upstream chemical injection and dual 50 ft. hose assemblies


	ELECTRICALLY HEATED PRESSURE WASHING SYSTEMS Environmentally friendly Instant hot water No scale build-up Low maintenance Consistently reliable Available in 24, 48 & 72 configurations

Model	Flow GPM	Pressure PSI	Heater Input	Motor H.P.	Amps 208V	Amps 480V	3 Phase 575V	Size Inches
GH410K424A	4	1100	24KW	3	72.5	33.3	26.6	32/24/50H
GH410K448A	4	1100	48KW	3	134.8	62.2	49.7	32/24/50H
GH420K424A	4	2000	24KW	5	77.1	35.5	28.4	32/24/50H
GH420K448A	4	2000	48KW	5	139.6	64.4	51.8	32/24/50H
GH429K424A	4	2900	24KW	7.5	85	39.1	31.3	32/24/50H
GH429K448A	4	2900	48KW	7.5	147.5	68	54.4	32/24/50H
GH440K448A	4	4000	48KW	10	154	70.9	56.7	32/24/50H
GH440K472A	4	4000	72KW	10	-	99.8	79.9	32/24/50H
GH543K448A	5.4	3000	48KW	10	154	70.9	56.7	32/24/50H
GH543K472A	5.4	3000	72KW	10	-	99.8	79.9	32/24/50H
GH562K448A	5.6	2000	48KW	7.5	147.5	68	54.4	32/24/50H
GH562K472A	5.6	2000	72KW	7.5	-	96.9	77.6	32/24/50H
GH612K448A	6	1200	48KW	5	139.6	64.4	51.8	32/24/50H
GH620K448A	6	2000	48KW	7.5	147.5	68	54.4	32/24/50H
GH620K472A	6	2000	72KW	7.5	-	96.9	77.6	32/24/50H


	MULTI-GUN, ELECTRICALLY HEATED PRESSURE WASHING SYSTEMS Environmentally friendly Instant hot water No scale build-up Low maintenance Consistently reliable Available in 48 & 72 configurations

Model	Flow GPM	Pressure PSI	Heater Input	Motor H.P.	Amps 208V	Amps 480V	3 Phase 575V	Size Inches
GH812K2448A	8	1200	48KW	7.5	147.5	68	54.4	53/48/38H
GH812K2472A	8	1200	72KW	7.5	-	96.9	77.6	53/48/38H
GH820K2448A	8	2000	48KW	10	154	70.9	56.7	53/48/38H
GH820K2472A	8	2000	72KW	10	-	99.8	79.9	53/48/38H
GH830K2448A	8	3000	48KW	15	165	75.9	60.7	53/48/38H
GH830K2472A	8	3000	72KW	15	-	104.8	83.9	53/48/38H


	MULTI-STAGE PUMPING SYSTEMS Typical Multi-Stage Applications: Food Processing Facilities Pharmaceutical Companies Pulp & Paper Mills Cargo Ships Rendering Plants Automotive Dealerships Truck & Equipment Dealerships Hotels & Convention Centres Any Multi-Operator Cleaning Application

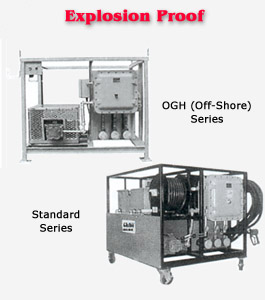

EXPLOSION PROOF ELECTRICALLY HEATED PRESSURE WASHING SYSTEMS

CSA Approved Class 1, Division 1, Group C & D
Automatic heat exchanger with stainless steel heating coil
Gun activated stop/start circuit with time delay
Automatic high temperature shut down
Low water supply shut-off and inlet water filter
Chemical injection with variable pressure lance
Heavy steel cage construction with lifting rings (OGH Series)
Stainless steel & galvanized exterior (OGH Series)
Drip proof pump base

Model	Flow GPM	Pressure PSI	Motor H.P	Voltage 3 Phase	Total AMPS	Dimensions L"xW"xH"
GH420K448A-EX1	4.0	2000	5	480/575	65/52	54/48/48
GH429K448A-EX1	4.0	2900	7.5	480/575	68/55	54/48/48
GH440K448A-EX1	4.0	4000	10	480/575	70/57	54/48/48
OGH420K448A-EX1	4.0	2000	7.5	480/575	68/55	60/48/54
OGH429K448A-EX1	4.0	2900	10	480/575	70/57	60/48/54
OGH440K448A-EX1	4.0	4000	15	480/575	76/61	60/48/54

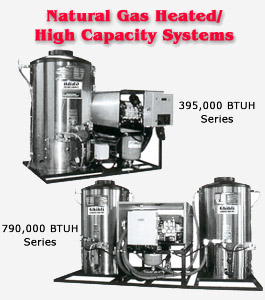

GAS/PROPANE-FIRED STATIONARY
PRESSURE WASHING SYSTEMS

CGA Approved / full safety controlled
Modulating gas thermostat control for consistent temperature output
Gun-activated stop/start circuit with time delay
Thermo-probe high temperature pump protection
¾" inner diameter schedule 80 heating coil
Stainless steel coil wrap
Chemical injection with variable pressure lance
Cold water through pump for long life
Ideal centralized system for multi-gun use
395,000 & 790,000 BTUH input available
10" exhaust flue

Model	Flow GPM	Pressure PSI	Motor H.P	Total Amps 230V-1PH	Total Amps 208V-3PH	Total Amps 480V-3PH	Total Amps 575V-3PH	Size Inches
GH411G40A	4	1100	3	17	9.8	4.4	3.5	48/30/52H
GH420G40A	4	1900	5	22	14.6	6.6	5.3	48/30/52H
GH429G40A	4	2900	7.5	33	22.5	10.2	8.2	48/30/52H
GH543G40A	5.4	3000	10	n/a	29	13.1	10.5	48/30/52H
GH562G40A	5.6	2000	7.5	33	22.5	10.2	8.2	48/30/52H
GH612G40A	6	1200	5	22	14.6	6.6	5.3	48/30/52H
GH620G40A	6	2000	7.5	33	22.5	10.2	8.2	48/30/52H
GH812G40A	8	1200	7.5	33	22.5	10.2	8.2	48/30/52H
GH820G40A	8	2000	10	n/a	29	13.1	10.5	48/30/52H
GH830G40A	8	3000	15	n/a	40	18.1	14.5	55/38/52H

HOT WATER PRESSURE WASHER

MODEL	Volume GPM	Pressure PSI	Pump Speed
H4035DGF	4.0	3500	3600

Unit Dimensions (LxWxH)	Engine HP	BTU	Unit Weight
42" x 28" x 43"	13	300,000	440
